WINT2量化

权重经过 CCQ(卷积编码量化) 方法进行离线压缩。权重的实际存储数值类型为INT8,每个INT8数值中打包了4个权重,等价于每个权重2bits。激活不做量化。在推理过程中,权重会被实时反量化并解码为BF16数值类型,并使用BF16数值类型进行计算。 - 支持硬件:GPU - 支持结构:MoE结构

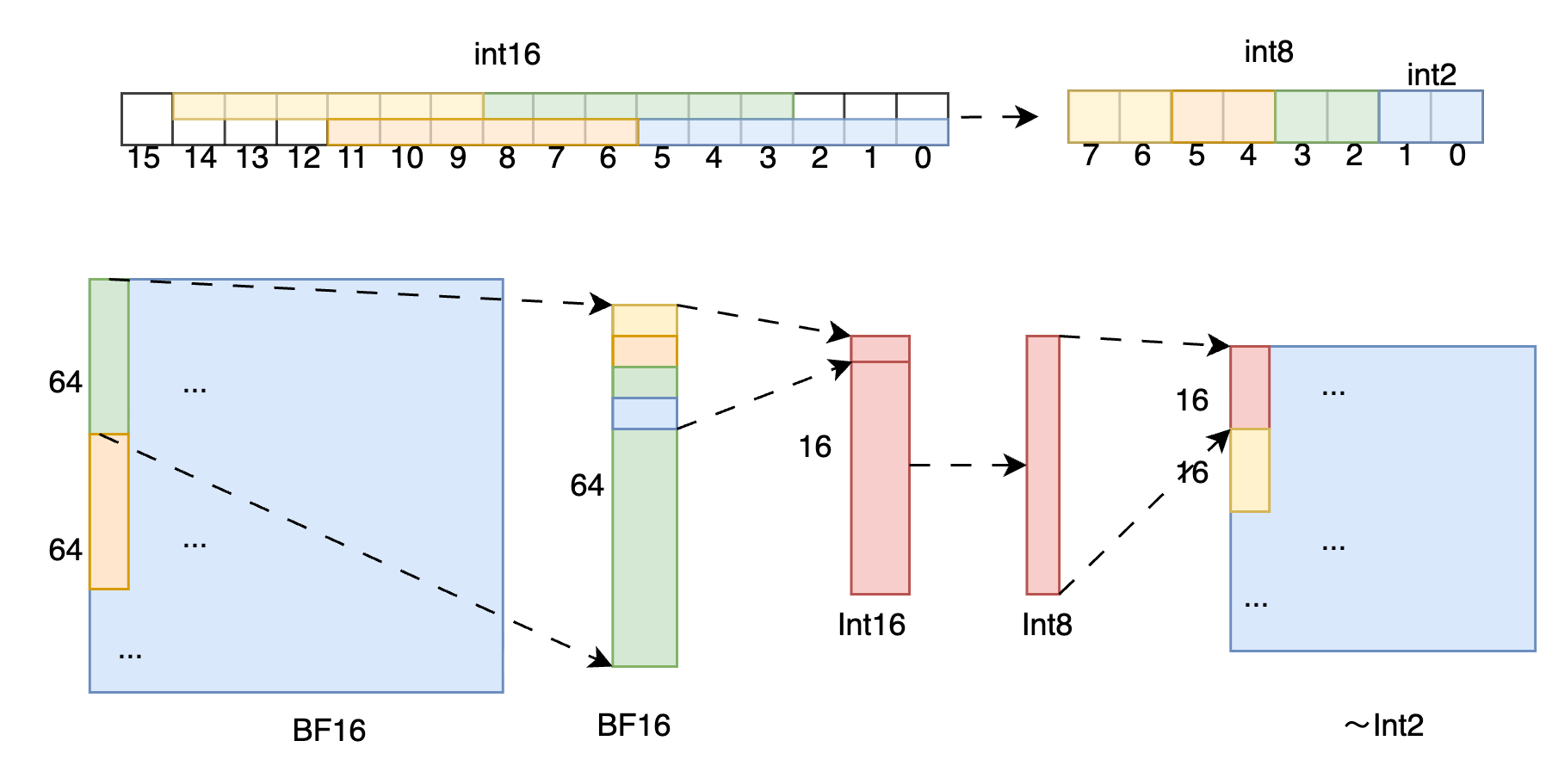

该方法依托卷积算法利用重叠的Bit位将2Bit的数值映射到更大的数值表示空间,使得模型权重量化后既保留原始数据更多的信息,同时将真实数值压缩到极低的2Bit大小,大致原理可参考下图: 卷积编码量化示意图

CCQ WINT2一般用于资源受限的低门槛场景,以ERNIE-4.5-300B-A47B为例,将权重压缩到89GB,可支持141GB H20单卡部署。

执行WINT2离线推理

  • 执行TP2/TP4模型时,可更换model_name_or_path以及tensor_parallel_size参数。
model_name_or_path = "baidu/ERNIE-4.5-300B-A47B-2Bits-Paddle"
prompts = ["解析三首李白的诗"]
from fastdeploy import LLM, SamplingParams
sampling_params = SamplingParams(temperature=0.7, top_p=0, max_tokens=128)
llm = LLM(model=model_name_or_path, tensor_parallel_size=1, use_cudagraph=True,)
outputs = llm.generate(prompts, sampling_params)
print(outputs)

启动WINT2推理服务

  • 执行TP2/TP4模型时,可更换--model以及tensor-parallel-size参数;
python -m fastdeploy.entrypoints.openai.api_server \
    --model baidu/ERNIE-4.5-300B-A47B-2Bits-Paddle \
    --port 8180 \
    --metrics-port 8181 \
    --engine-worker-queue-port 8182 \
    --cache-queue-port 8183 \
    --tensor-parallel-size 1 \
    --max-model-len  32768 \
    --use-cudagraph \
    --enable-prefix-caching \
    --enable-chunked-prefill \
    --max-num-seqs 256

用户发起服务请求

执行启动服务指令后,当终端打印如下信息,说明服务已经启动成功。

api_server.py[line:91] Launching metrics service at http://0.0.0.0:8181/metrics
api_server.py[line:94] Launching chat completion service at http://0.0.0.0:8180/v1/chat/completions
api_server.py[line:97] Launching completion service at http://0.0.0.0:8180/v1/completions
INFO:     Started server process [13909]
INFO:     Waiting for application startup.
INFO:     Application startup complete.
INFO:     Uvicorn running on http://0.0.0.0:8180 (Press CTRL+C to quit)

FastDeploy提供服务探活接口,用以判断服务的启动状态,执行如下命令返回 HTTP/1.1 200 OK 即表示服务启动成功。

curl -i http://0.0.0.0:8180/health

通过如下命令发起服务请求

curl -X POST "http://0.0.0.0:8180/v1/chat/completions" \
-H "Content-Type: application/json" \
-d '{
  "messages": [
    {"role": "user", "content": "把李白的静夜思改写为现代诗"}
  ]
}'

FastDeploy服务接口兼容OpenAI协议,可以通过如下Python代码发起服务请求。

import openai
host = "0.0.0.0"
port = "8180"
client = openai.Client(base_url=f"http://{host}:{port}/v1", api_key="null")

response = client.chat.completions.create(
    model="null",
    messages=[
        {"role": "system", "content": "I'm a helpful AI assistant."},
        {"role": "user", "content": "把李白的静夜思改写为现代诗"},
    ],
    stream=True,
)
for chunk in response:
    if chunk.choices[0].delta:
        print(chunk.choices[0].delta.content, end='')
print('\n')

通过指定 --model baidu/ERNIE-4.5-300B-A47B-2Bits-Paddle 可自动从AIStudio下载已离线量化好的WINT2模型,在该模型的config.json文件中,会有WINT2量化相关的配置信息,不用再在启动推理服务时设置 --quantization.

模型的config.json文件中的量化配置示例如下:

"quantization_config": {
    "dense_quant_type": "wint8",
    "moe_quant_type": "w4w2",
    "quantization": "wint2",
    "moe_quant_config": {
    "moe_w4_quant_config": {
        "quant_type": "wint4",
        "quant_granularity": "per_channel",
        "quant_start_layer": 0,
        "quant_end_layer": 6
    },
    "moe_w2_quant_config": {
        "quant_type": "wint2",
        "quant_granularity": "pp_acc",
        "quant_group_size": 64,
        "quant_start_layer": 7,
        "quant_end_layer": 53
    }
  }
}

WINT2效果

在ERNIE-4.5-300B-A47B模型上,WINT2与WINT4效果对比:

测试集 数据集大小 WINT4 WINT2
IFEval 500 88.17 85.95
BBH 6511 94.43 90.06
DROP 9536 91.17 89.32
CMMLU 11477 89.92 86.55
