Graceful Service Node Shutdown Solution

1. Core Objective

Achieve graceful shutdown of service nodes, ensuring no in-flight user requests are lost during service termination while maintaining overall cluster availability.

2. Solution Overview

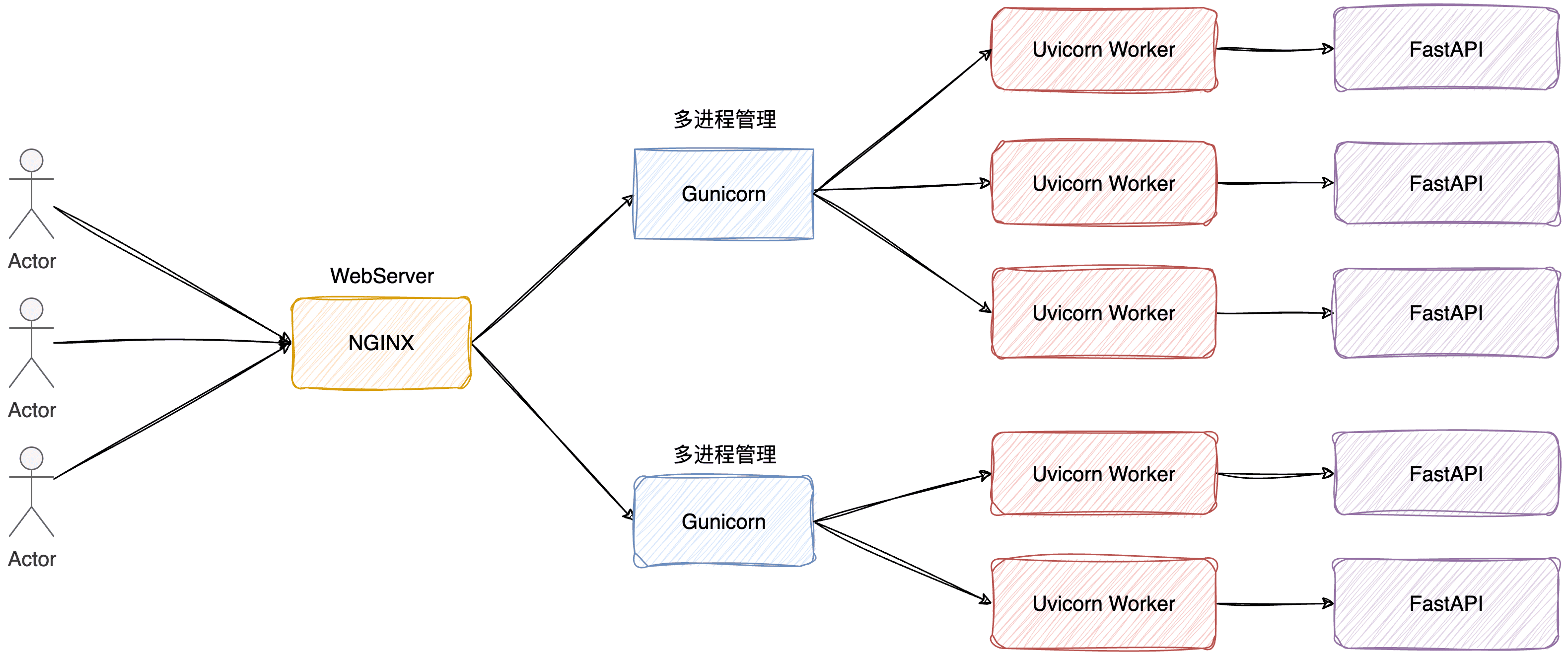

This solution combines Nginx reverse proxy, Gunicorn server, Uvicorn server, and FastAPI working in collaboration to achieve the objective.

graceful_shutdown

3. Component Introduction

1. Nginx: Traffic Entry Point and Load Balancer

  • Functions:
  • Acts as a reverse proxy, receiving all external client requests and distributing them to upstream Gunicorn worker nodes according to load balancing policies.
  • Actively monitors backend node health status through health check mechanisms.
  • Enables instantaneous removal of problematic nodes from the service pool through configuration management, achieving traffic switching.

2. Gunicorn: WSGI HTTP Server (Process Manager)

  • Functions:
  • Serves as the master process, managing multiple Uvicorn worker child processes.
  • Receives external signals (e.g., SIGTERM) and coordinates the graceful shutdown process for all child processes.
  • Daemonizes worker processes and automatically restarts them upon abnormal termination, ensuring service robustness.

3. Uvicorn: ASGI Server (Worker Process)

  • Functions:
  • Functions as a Gunicorn-managed worker, actually handling HTTP requests.
  • Runs the FastAPI application instance, processing specific business logic.
  • Implements the ASGI protocol, supporting asynchronous request processing for high performance.

Advantages

  1. Nginx:
  2. Can quickly isolate faulty nodes, ensuring overall service availability.

  3. Allows configuration updates without downtime using nginx -s reload, making it transparent to users.

  4. Gunicorn (Compared to Uvicorn's native multi-worker mode):

  5. Mature Process Management: Built-in comprehensive process spawning, recycling, and management logic, eliminating the need for custom implementation.
  6. Process Daemon Capability: The Gunicorn Master automatically forks new Workers if they crash, whereas in Uvicorn's --workers mode, any crashed process is not restarted and requires an external daemon.

  7. Rich Configuration: Offers numerous parameters for adjusting timeouts, number of workers, restart policies, etc.

  8. Uvicorn:

  9. Extremely fast, built on uvloop and httptools.
  10. Natively supports graceful shutdown: upon receiving a shutdown signal, it stops accepting new connections and waits for existing requests to complete before exiting.

Graceful Shutdown Procedure

When a specific node needs to be taken offline, the steps are as follows:

  1. Nginx Monitors Node Health Status:

  2. Monitors the node's health status by periodically sending health check requests to it.

  3. Removal from Load Balancing:

  4. Modify the Nginx configuration to mark the target node as down and reload the Nginx configuration.

  5. Subsequently, all new requests will no longer be sent to the target node.

  6. Gunicorn Server:

  7. Monitors for stop signals. Upon receiving a stop signal (e.g., SIGTERM), it relays this signal to all Uvicorn child processes.

  8. Sending the Stop Signal:

  9. Send a SIGTERM signal to the Uvicorn process on the target node, triggering Uvicorn's graceful shutdown process.

  10. Waiting for Request Processing:

  11. Wait for a period slightly longer than timeout_graceful_shutdown before forcefully terminating the service, allowing the node sufficient time to complete processing all received requests.

  12. Shutdown Completion:

  13. The node has now processed all remaining requests and exited safely.
